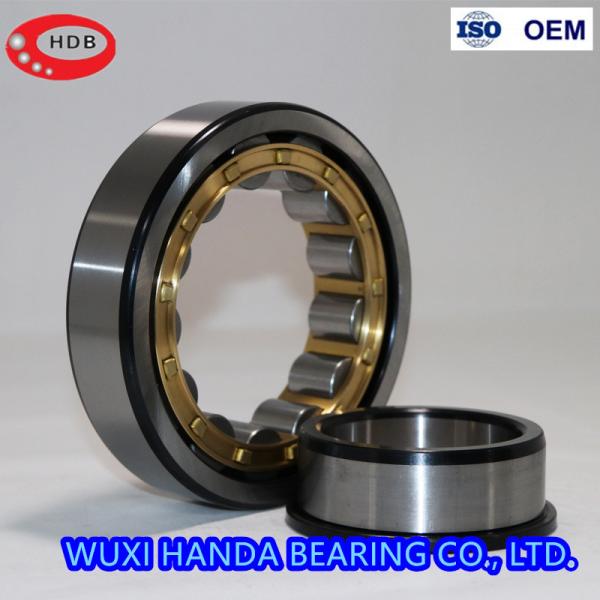

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

Product Categories
Wuxi Handa Bearing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

Brand Name : HDBB

Model Number : NJ2226 NJ2228 NJ2230 NJ2232

Certification : ISO9001 & GB307

Place of Origin : CHINA

MOQ : 10 Pcs

Payment Terms : T/T , Western Union, RMB

Supply Ability : 80,000 Pcs per Month

Delivery Time : 5-7 Works days

Packaging Details : Industrial Packing Single Color Box OEM

Model : NJ2226 NJ2228 NJ2230 NJ2232

Material : Chrome steel

Structure : Cylindrical Roller Bearing

Type : Single row

Cage : ECP ECM EM ECJ

Series : N, NJ, NUP, NU, NF

HS Code : 8482500090

Term : FOB, CIF, CNF Price

Contact Now

NJ Series Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 Size 160x290x80 Weight 3.36 Kgs Ex Stock

1 . Cylindrical roller bearings have below types:

N type :
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.

NU type :
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ type :
The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF type :
The outer ring has one integral flange and the inner ring two integral flanges.
NUP type :
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN type :
No outer ring and the inner ring two integral flanges.
NN type :
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft
relative bearing between the axial displacement generated in both directions.

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

2 . Parts of NJ Series Cylindrical Roller Bearing :

NJ series
Model d. mm D. mm H. mm W.kgs
NJ1024EM 120 180 28 3.8
NJ1026EM 130 200 33 3.96
NJ1028EM 140 210 33 4.8
NJ1030EM 150 225 35 4.8
NJ1032EM 160 240 38 6
NJ1034EM 170 260 42 8.5
NJ1036EM 180 280 46 11
NJ1038EM 190 290 46 11.8
NJ1040EM 200 310 51 15
NJ1044EM 220 340 56 19.6
NJ1048EM 240 360 56 20.8
NJ1052EM 260 400 65 30
NJ1056EM 280 420 65 34.2
NJ1060EM 300 460 74 45
NJ1064EM 320 480 74 47.8
NJ1068EM 340 520 82 68
NJ1072EM 360 540 82 67.7
NJ1080EM 400 600 90 95.5
NJ220EM 100 180 34 3.81
NJ222EM 110 220 38 5.11
NJ224EM 120 215 40 6.48
NJ226EM 130 230 40 7.46
NJ228EM 140 250 42 9.62
NJ230EM 150 270 45 12.1
NJ232EM 160 290 48 14.5
NJ234EM 170 310 52 19.3
NJ236EM 180 320 52 19.8
NJ238EM 190 340 55 22.9
NJ240EM 200 360 58 27.7
NJ244EM 220 400 65 38.9
NJ248EM 240 440 72 53
NJ252EM 260 480 80 68.2
NJ256EM 280 500 80 70.3
NJ260EM 300 540 85 91
NJ2216EM 80 140 33 2.36
NJ2218EM 90 160 40 3.73
NJ2219EM 95 170 43 5
NJ2220EM 100 180 46 5.99
NJ2222EM 110 200 53 7.8
NJ2224EM 120 215 58 9.55
NJ2226EM 130 230 64 11.9
NJ2228EM 140 250 68 15
NJ2230EM 150 270 73 18.1
NJ2232EM 160 290 80 24.7
NJ2234EM 170 310 86 31
NJ2236EM 180 320 86 31
NJ2238EM 190 340 92 40
NJ2240EM 200 360 98 44
NJ2244EM 220 400 108 65
NJ2312EM 60 130 46 2.81
NJ2313EM 65 140 48 3.36

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

3. Application of NJ Series Roller Bearing :

screen and lifting and transportation machinery crankshaft,

Automobile and tractor gearbox, Internal combustion engine,

Generator, Gas turbine, Reducer, Rolling mill, Vibrating Large motors,

Machine tool spindles, Engine front and rear support shafts,

Train and bus box shaft support, Diesel engine
